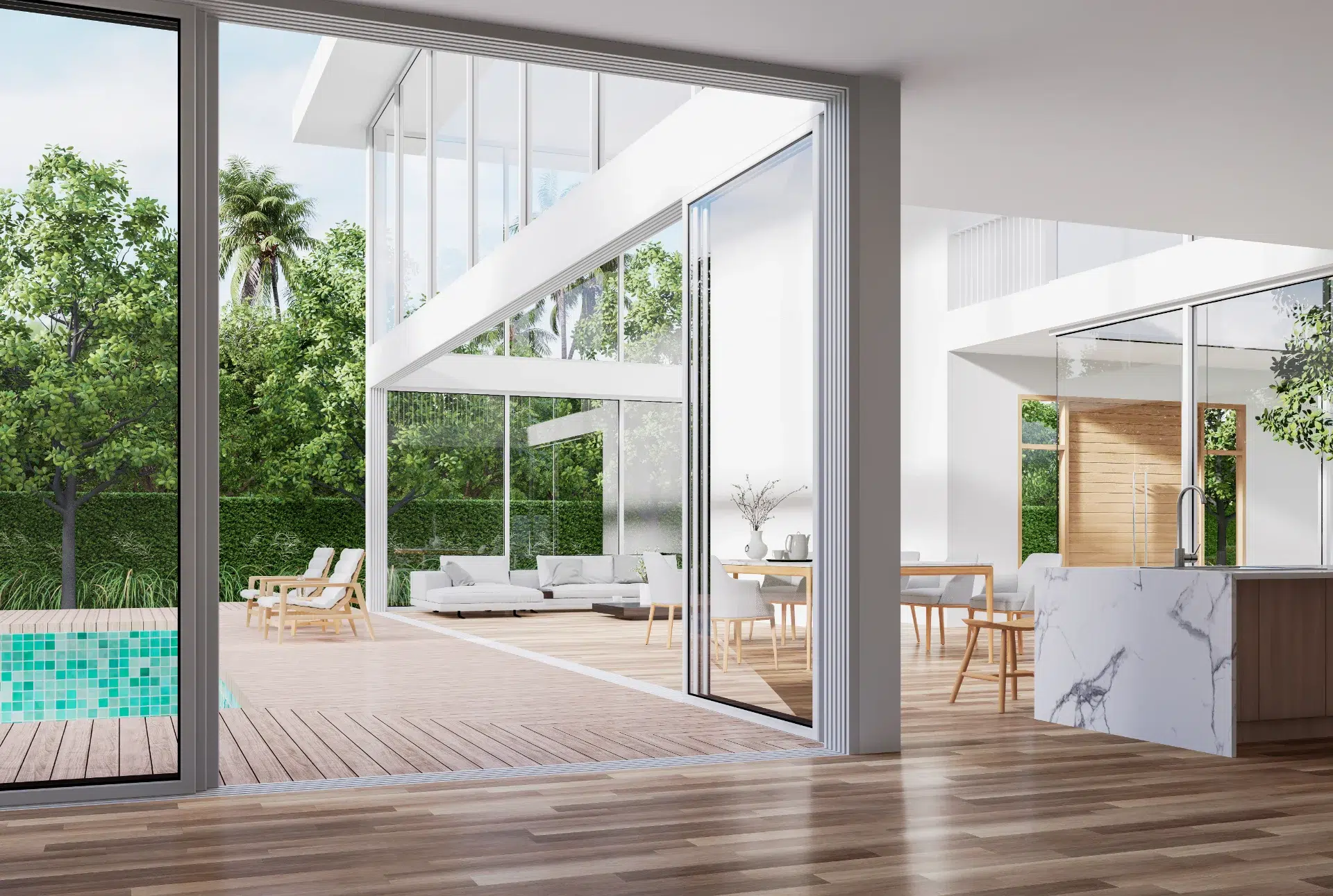

VLX 138 Panoramic Sliding Door in Dallas, TX | Hale Windows Dallas

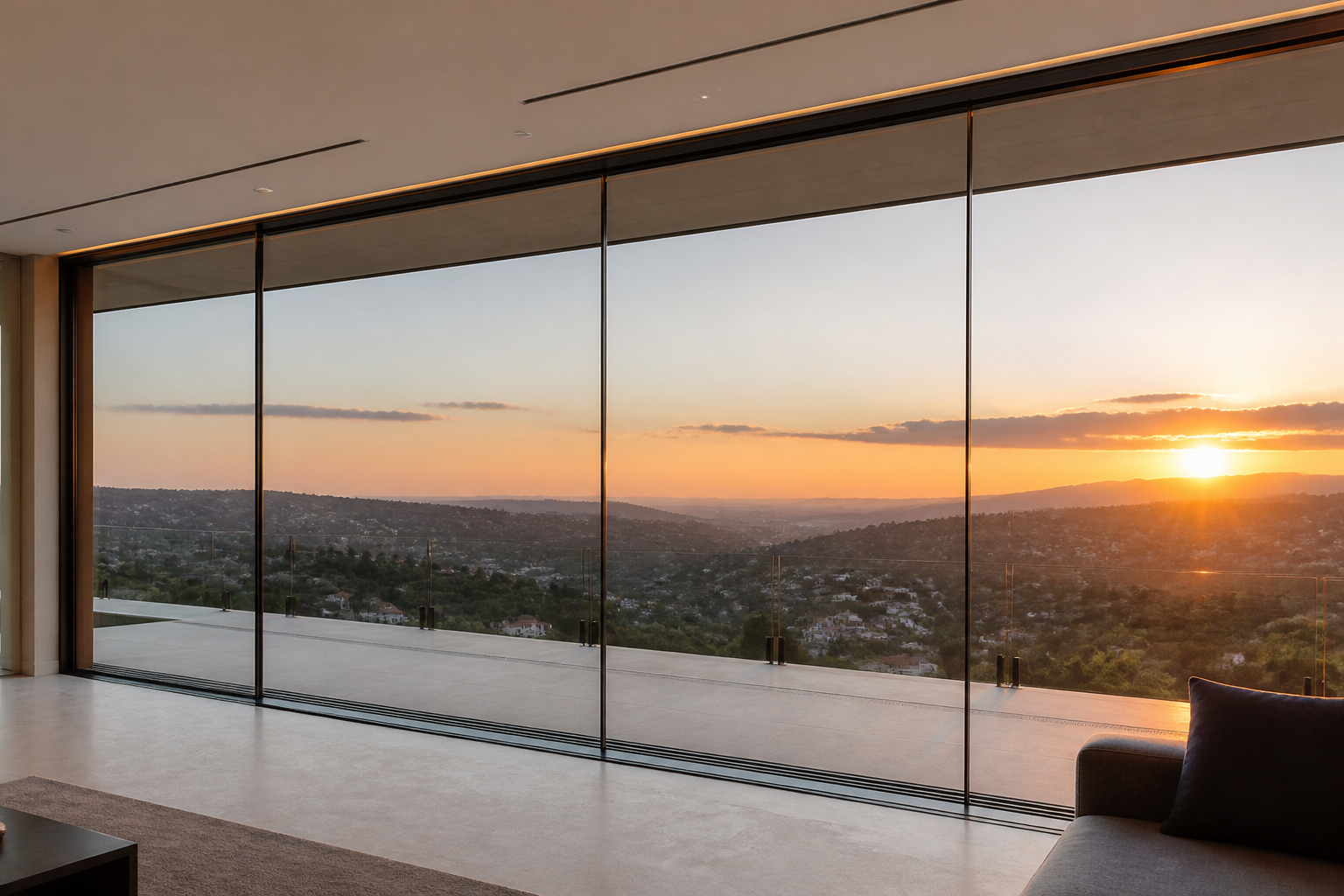

The VLX 138 Panoramic Sliding Door is what Dallas homeowners turn to when they want an entire wall to open up to a patio, pool, or skyline view. Built by ViewLux and installed by Hale Windows Dallas, this series spans up to 36 feet with minimal visible framing, so the glass does the talking. It’s the door you spec when standard patio sliders feel too cramped. We’re an authorized ViewLux installation partner serving Dallas and the surrounding metro, which means you get factory-backed product quality plus local installation accountability. Call (361) 203-9040 to schedule a free on-site measurement and get a written quote.
Product Overview – VLX 138 Panoramic Sliding Door

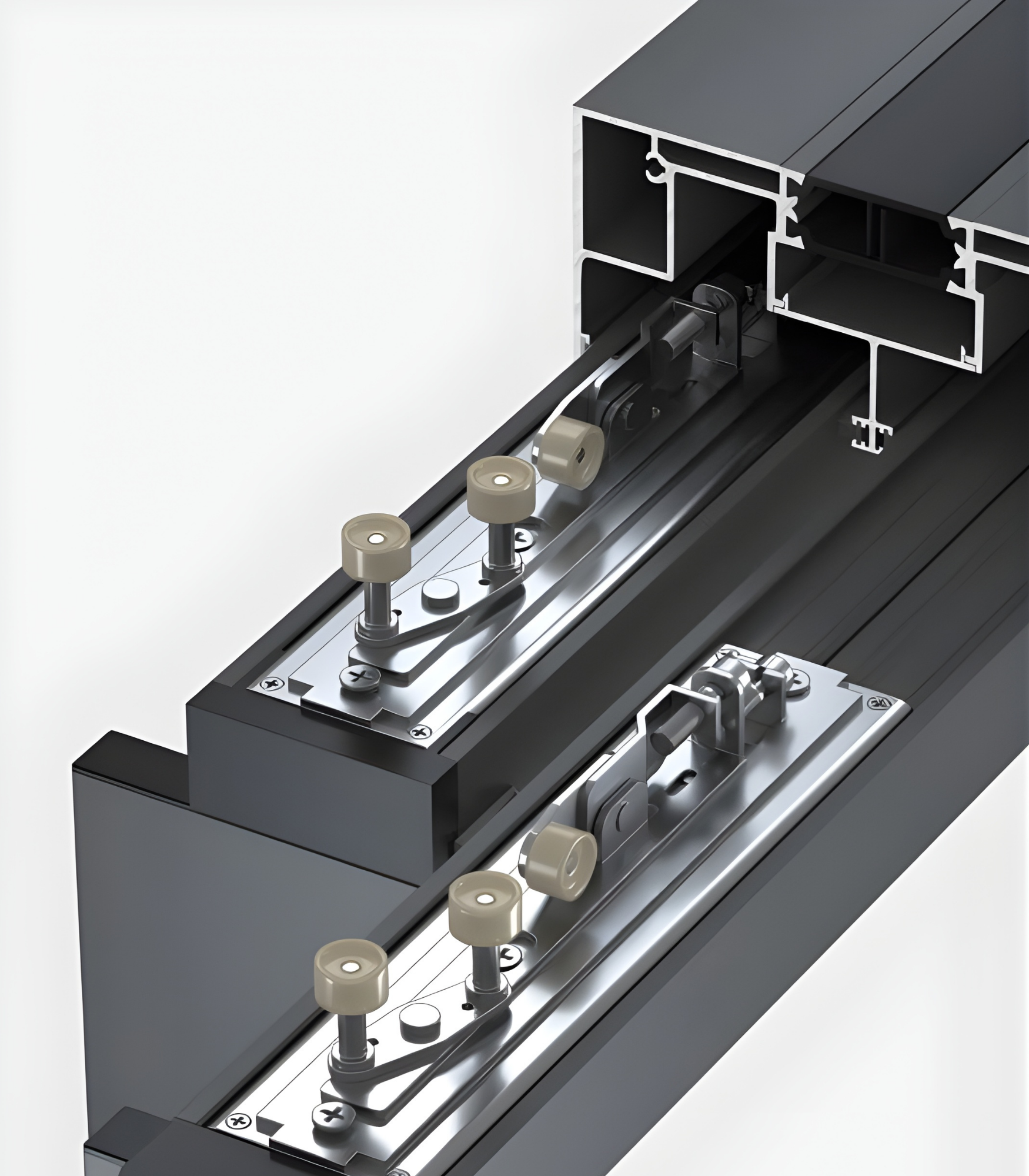

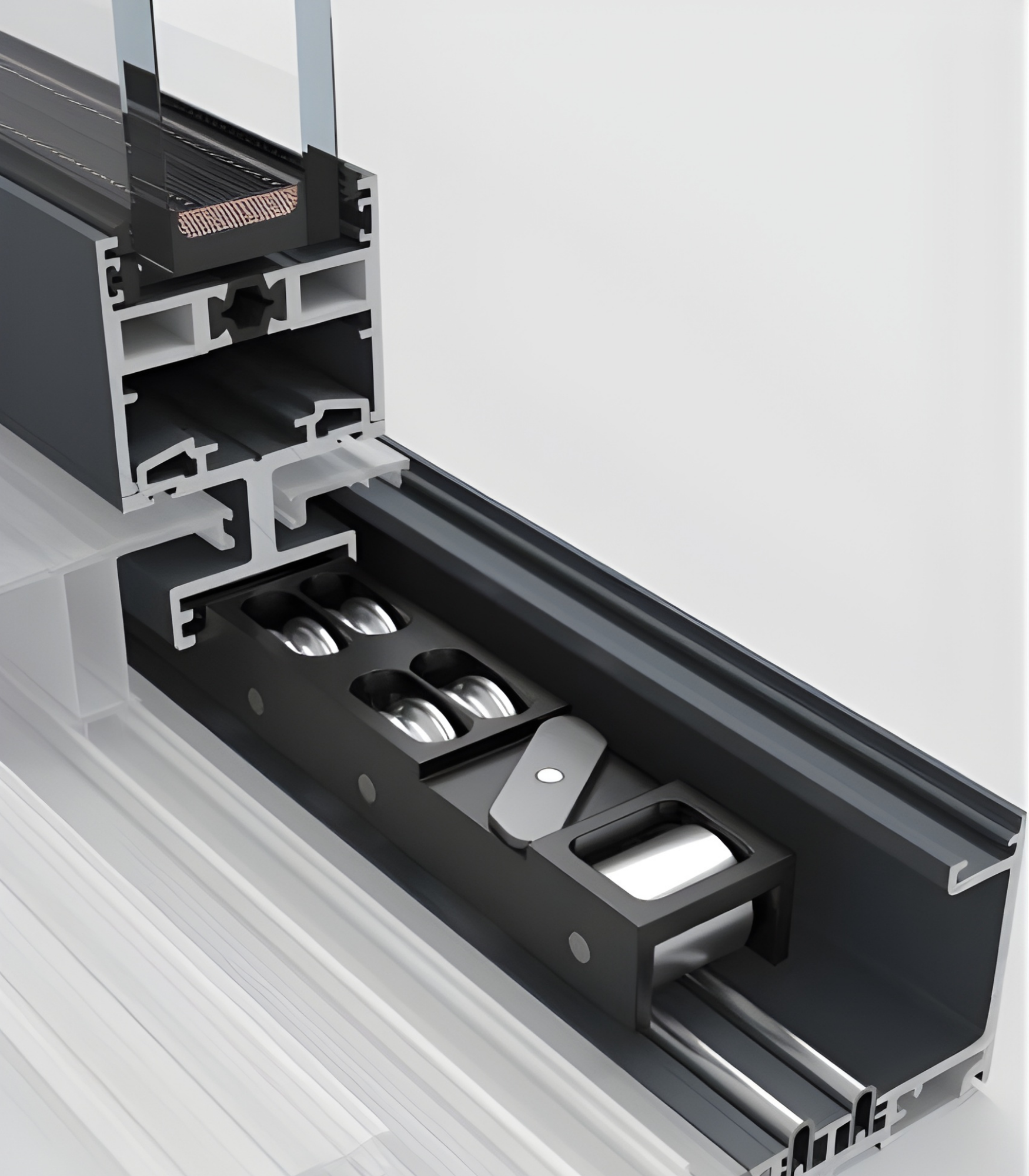

The VLX 138 is a large-span panoramic slider designed for openings that most door systems can’t handle. A 36-foot-wide span means you can replace an entire back wall with moving glass. Even on smaller openings, the design philosophy holds: thin sightlines, clean geometry, and a glide so smooth it feels weightless. That last part comes from stainless steel roller bearings that carry each panel along the track with almost no resistance. You push a 200-pound panel with two fingers.

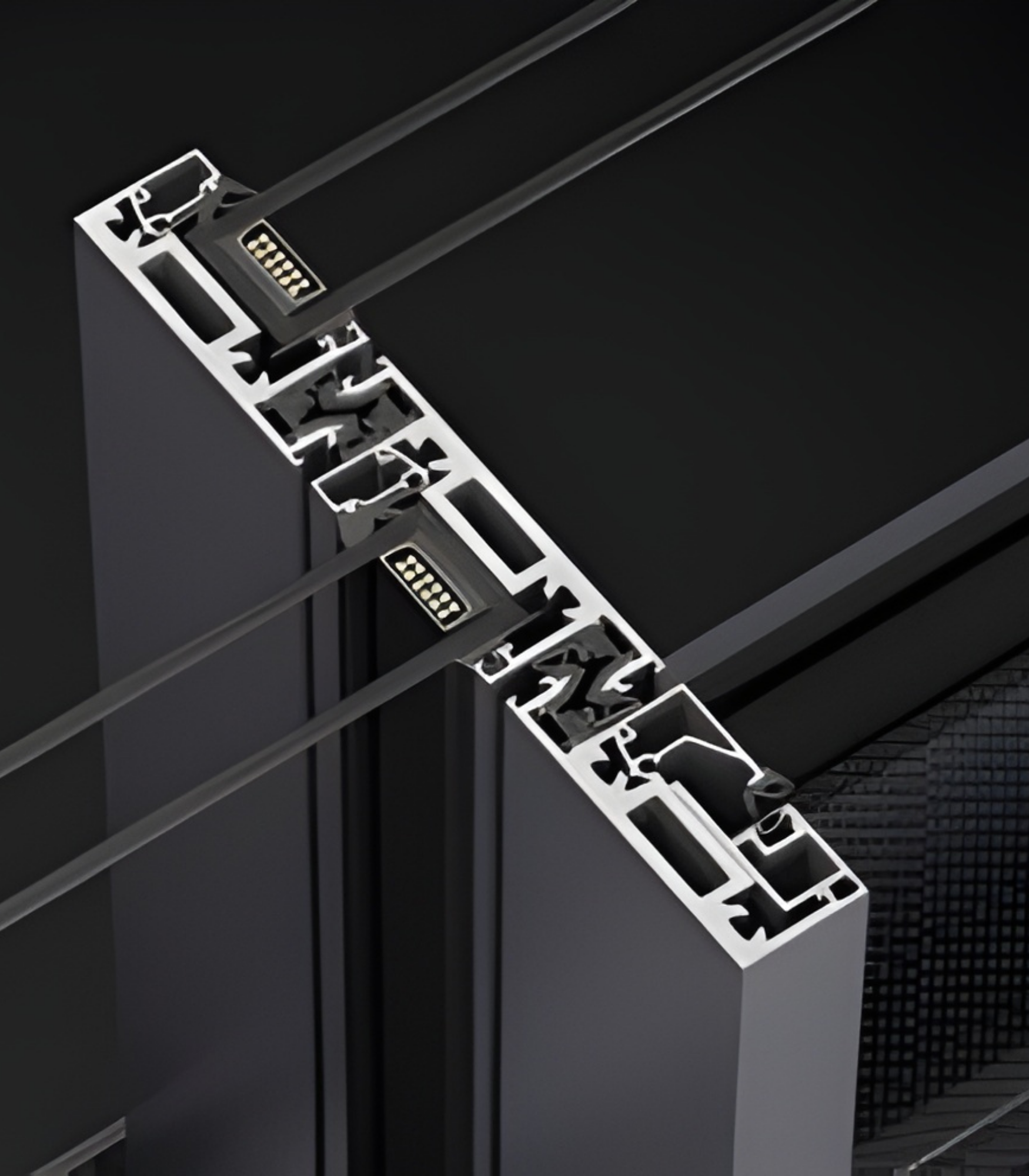

The framing is extruded aluminum with a wall thickness of 0.138 inches, which sounds technical but translates to rigidity. Panels this large want to flex and rack. The VLX 138 doesn’t. At a profile width of 1.535 inches, the frame stays slim enough to preserve the view while providing enough structure to carry the load. This is the series we recommend for contemporary builds in Highland Park, mid-century remodels in Lakewood, and any Dallas home where the indoor-outdoor connection is the point of the project. Luxury large-span panoramic slider is an accurate description: the system is built for uninterrupted sightlines and long-term structural integrity in a climate that swings from 105-degree summers to ice storms.
Technical Specifications
Here’s what the VLX 138 series offers, in plain terms. These are the numbers we quote from when we spec a project in Dallas.
- Frame wall thickness: 0.138 inches, extruded aluminum
- Profile width: 1.535 inches, slim sightline design
- Maximum span: Up to 36 feet wide
- Track configurations: 2-track, 3-track, and 4-track layouts for different panel counts and stacking options
- Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screen options: Retractable screen or sliding screen

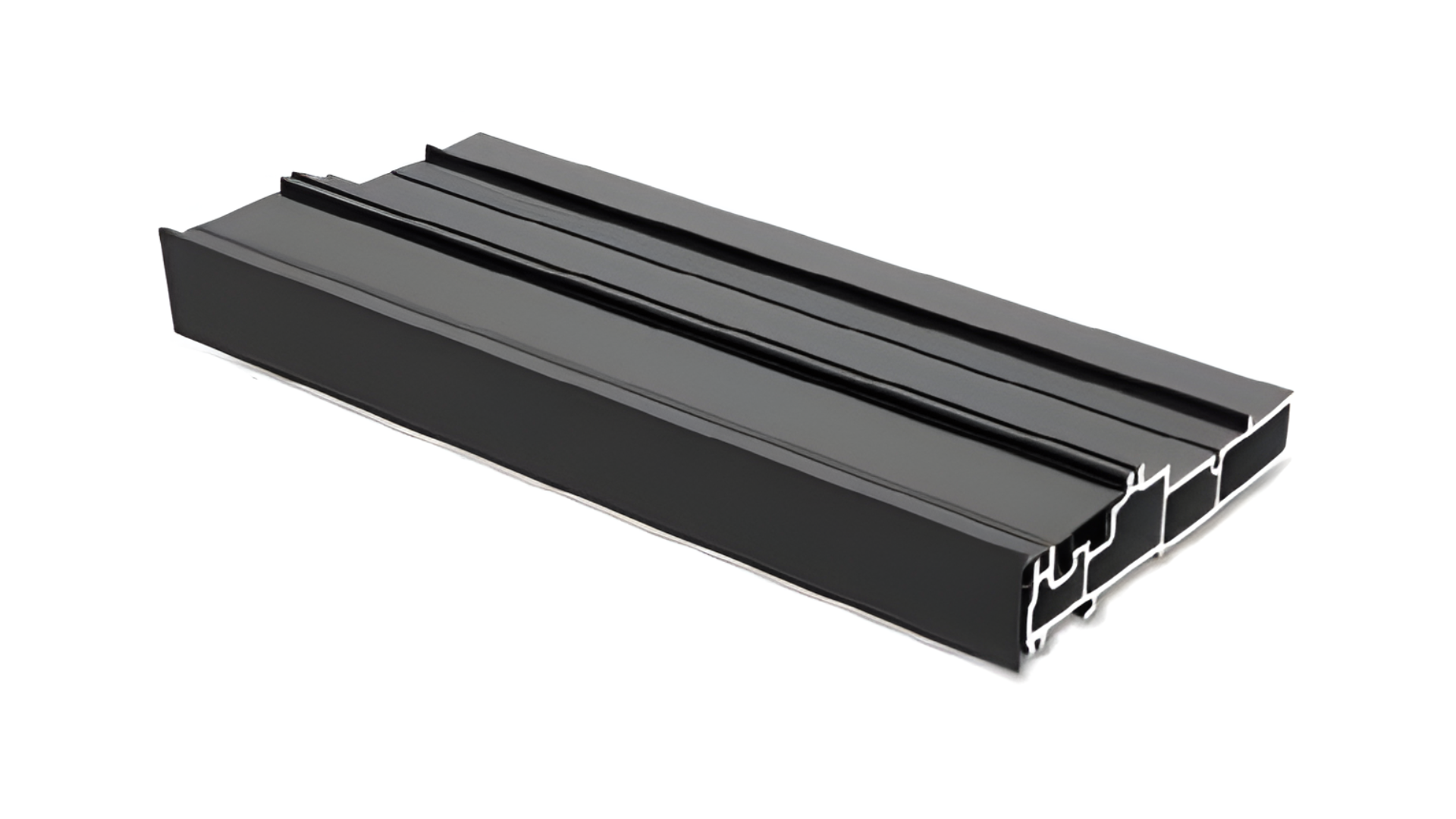

- Sill options: Flush sill, low-profile sill, or recessed sill for different threshold needs and accessibility requirements
- Performance: NFRC-rated thermal performance, AAMA 2400/2410 installation compliance, impact-resistant laminated glass available
Performance Features
Thermal Efficiency

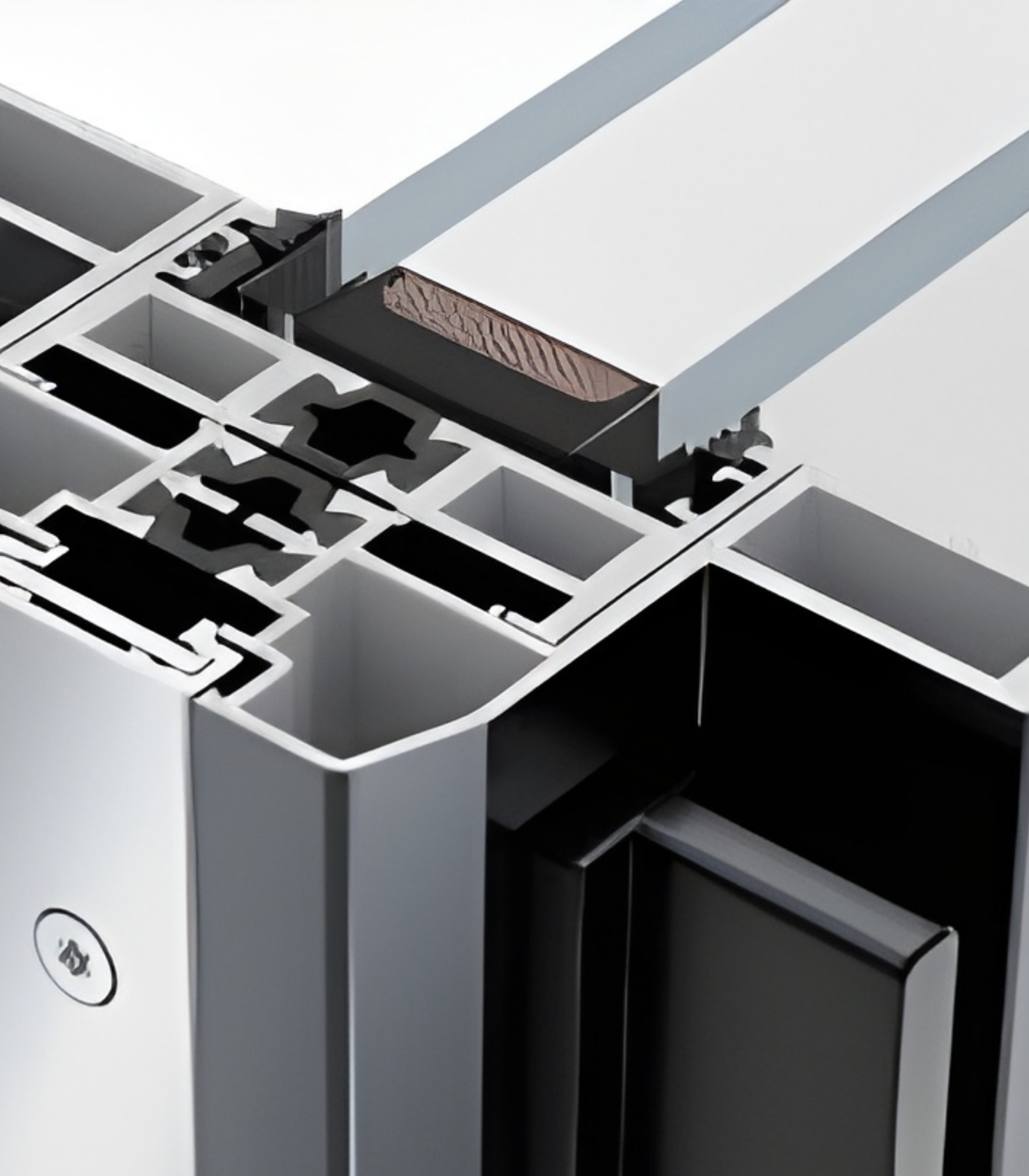

Dallas summers punish poorly insulated glass. The VLX 138 uses thermal break technology to separate the interior and exterior aluminum, cutting heat transfer through the frame. With Low-E glass, the system earns NFRC-rated energy performance numbers that hold up in our climate. Your AC works less.
Acoustic Performance
If you live near the Tollway, Love Field flight paths, or a busy street in Uptown, glass choice matters. Laminated glass options on the VLX 138 deliver measurable sound reduction. The tighter the seal system, the quieter the room. We spec laminated glass for Dallas clients who want the view without the noise.
Airtightness & Weather Seal
The panel interlock and perimeter gasketing on this system are engineered to stop air infiltration. That matters in January when a north wind hits the glass. Air leakage drives energy bills and drafts. The VLX 138’s seal design keeps conditioned air inside where it belongs.
Waterproofing

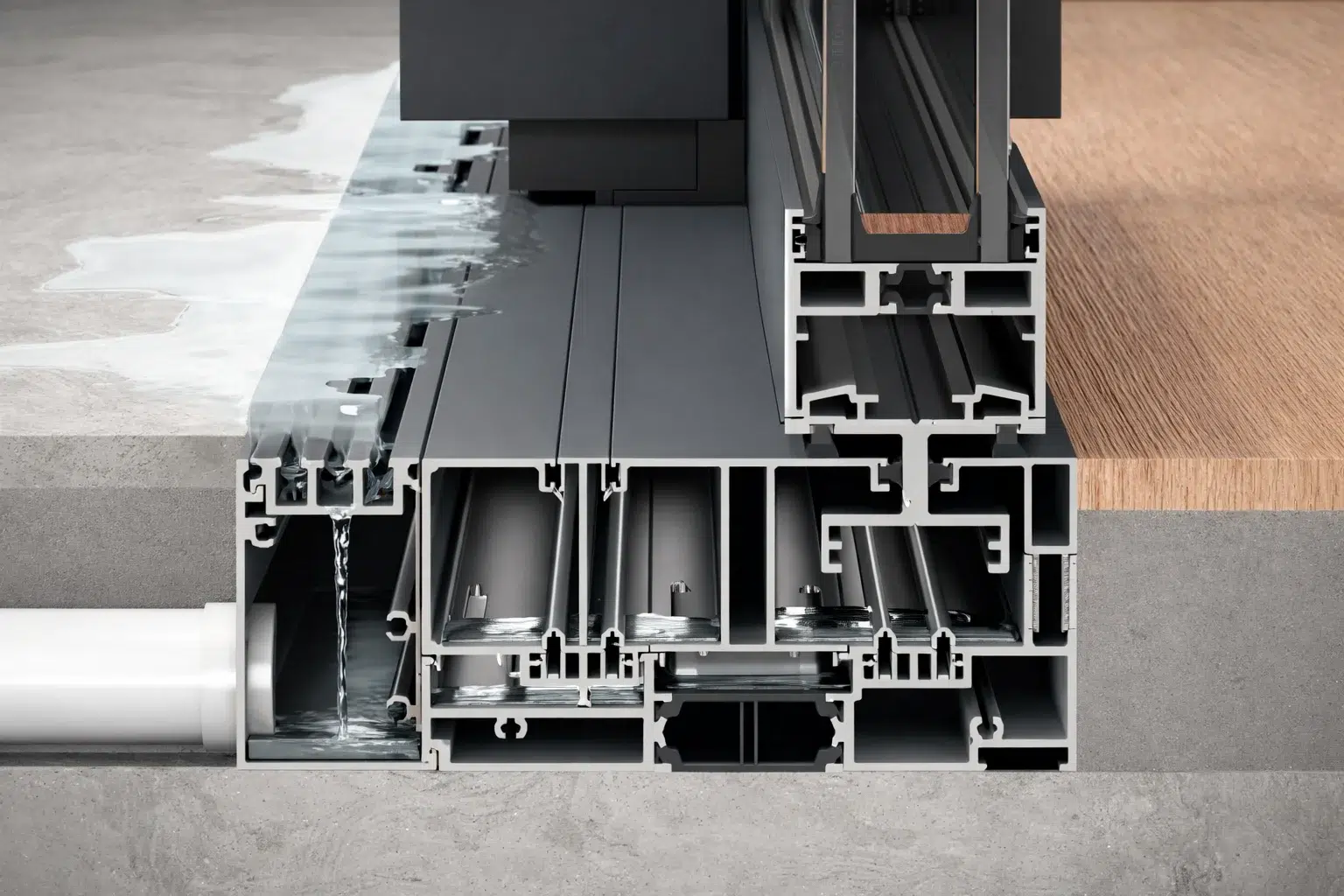

Dallas gets real rain, sometimes all at once. The VLX 138’s sill and drainage design routes water away from the interior. We install every unit with AAMA 812 low-expansion foam sealant on all perimeter joints, which fills gaps completely and prevents moisture intrusion at the wall junction. The sill you choose, flush, low-profile, or recessed, affects drainage performance, and we’ll recommend the right one for your exposure.
Wind Resistance
These panels are large. When a storm front rolls through North Texas, the wind load on a 20-foot glass wall is enormous. The VLX 138 is wind-load rated, and we verify the rating against your specific opening dimensions and Dallas-area code requirements before ordering anything. Impact-resistant laminated glass is an option for additional protection.
Security & Hardware

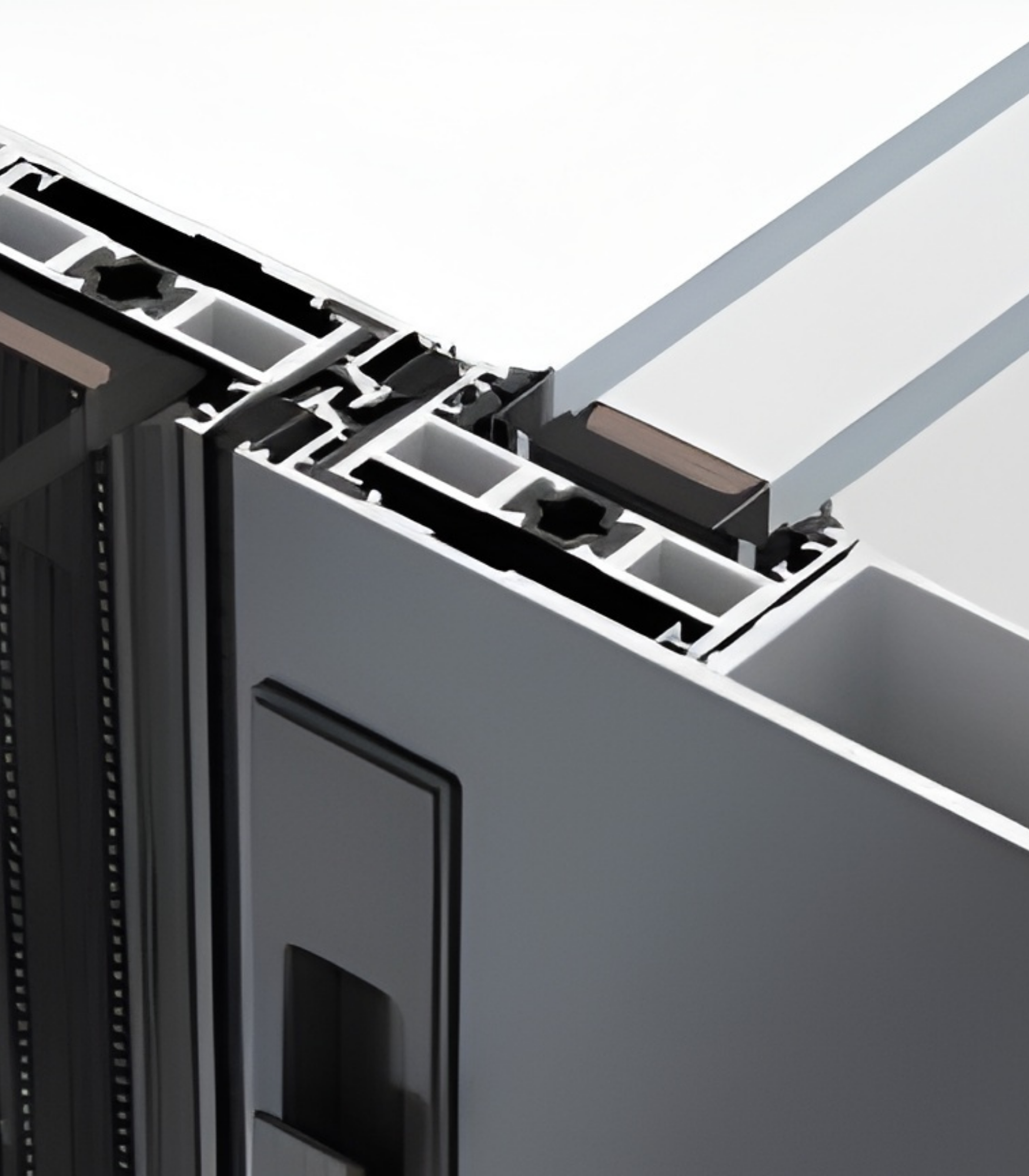

A door this wide has to lock properly. The VLX 138 uses multi-point locking hardware that engages along the panel height, not just at a single latch point. Combined with the structural rigidity of the frame, you get a door that’s genuinely hard to force. The hardware is integrated, not afterthought.
Color & Glass Options
The VLX 138 comes in six finishes. Premium Black is the most requested in Dallas right now, particularly for modern builds in neighborhoods like Knox-Henderson and the Design District. Pure White suits traditional Dallas homes with white trim and painted brick. Anodized Silver has a raw, industrial feel that works well on mid-century properties. Bronze is a warmer alternative that reads as upscale and muted. Champagne is less common but striking on the right facade, particularly with stucco or limestone. Teak Wood is a textured finish that mimics the warmth of wood grain without the maintenance of actual timber.
Glass selection depends on orientation and privacy needs. Clear glass is the default for maximum light. Low-E is what we recommend for west- and south-facing Dallas exposures, where the afternoon sun is brutal. Frosted and Obscure glass provide privacy for street-facing walls or bathrooms. Black Tint and Gray Tint reduce glare and solar gain while adding a sleek aesthetic. If you want tint plus energy performance, we can combine it with Low-E coatings. Impact-resistant laminated glass is available across the series for storm and security concerns.
Installation by Hale Windows Dallas in Dallas
We install the VLX 138 the same way we install every door and window we sell: to AAMA 2400/2410 standards, with documented flashing, sealing, and shimming at every step. Installation is where most large sliding door projects fail. A door this size can be manufactured perfectly and still leak or bind if it’s not set correctly. That’s why ViewLux relies on authorized partners like Hale Windows Dallas to handle the field work.
Our process starts with a pre-installation inspection of the opening. We check the rough opening dimensions, the condition of the subfloor and header, and the load path above the door. Then we set the frame level, plumb, and square. That’s not optional on a 36-foot span. A frame that’s even slightly out of square will make the panels bind and wear the rollers prematurely. We use AAMA 812 low-expansion foam sealant on every perimeter joint, which seals, insulates, and won’t warp the frame like expanding foam can. After the panels go in, we run a full water test, verify the operation, and clean up the site. In Dallas, we also account for slab movement. Our clay soils shift with moisture, and a poorly installed door will show every bit of that movement. We set sill heights and clearances accordingly.
Improper installation voids the manufacturer warranty. That’s not a scare tactic, it’s the reality of premium door systems. When Hale Windows Dallas installs the VLX 138, the installation is warranty-safe and the product warranty stays intact.
Frequently Asked Questions – VLX 138 Panoramic Sliding Door
Lead times vary by panel count, glass type, and finish, but most VLX 138 orders in Dallas are manufactured and delivered within 6 to 10 weeks from order confirmation. Custom sizes and impact-rated glass can add time. Call (361) 203-9040 and we’ll get you a current lead time for your exact configuration.
The VLX 138 can qualify for federal energy tax credits when configured with Low-E glass that meets the current ENERGY STAR criteria for the South-Central climate zone, which includes Dallas. Eligibility depends on the specific glass package and the year of installation. We’ll help you verify qualification before you order.
The VLX 138 carries ViewLux’s manufacturer warranty on the frame, finish, and hardware. Warranty coverage requires installation by an authorized partner like Hale Windows Dallas, and it stays valid only if the installation follows AAMA 2400/2410 procedures. We’ll walk you through the exact coverage terms for your configuration.
Yes, the VLX 138 is built to your opening’s exact dimensions up to a 36-foot total span. Panel widths, track count, and stacking configuration are all customizable. We measure, we spec, and the door is fabricated to fit, no trim fillers or awkward gaps.
Aluminum frames need very little maintenance. Clean the tracks every few months to keep dust and debris out of the rollers, wipe the frames with mild soap and water, and check the drain holes along the sill. The stainless bearings are sealed and don’t need lubrication. We review all of this with you after installation.
Get a Quote – VLX 138 Panoramic Sliding Door in Dallas
If you’re planning a project that calls for this much glass, let’s talk. Hale Windows Dallas provides free on-site measurements and written quotes for the VLX 138 throughout the Dallas metro. We’ll help you choose the right track configuration, glass package, and finish for your home. Call (361) 203-9040 today to schedule your free estimate.
Written by the team at Hale Windows Dallas, authorized ViewLux installation partner serving Dallas, TX and surrounding communities.
