The VLX 100 bifold door is an accordion-style aluminum folding door that opens wall-to-wall, erasing the line between your living room and your patio. For Dallas homeowners who entertain through our long spring and fall seasons, it’s the single biggest architectural upgrade you can make to a back wall. Hale Windows Dallas is an authorized ViewLux installation partner, which means we supply, install, and warranty this system directly, no middlemen. We’ve installed the VLX 100 in neighborhoods from Lakewood to Frisco, and we know exactly how it performs in North Texas heat, humidity, and wind. Call (361) 203-9040 for a free project estimate.

Call (361) 203-9040

Product Overview – VLX 100 Bifold / Folding Door

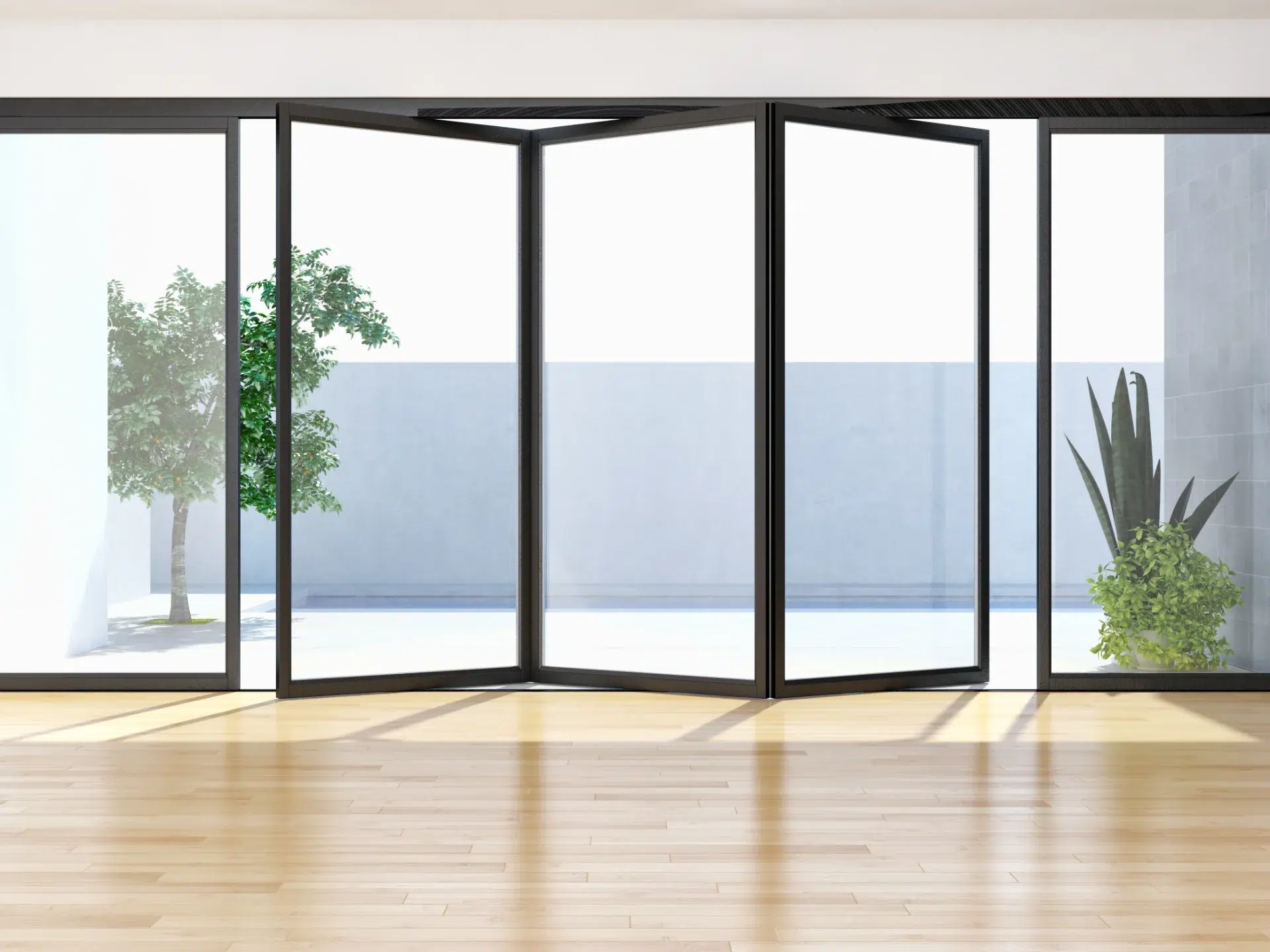

The VLX 100 was engineered for one purpose: to let an entire wall disappear. Instead of a fixed glass panel with a single swing door, this system uses multiple aluminum panels hinged together that fold and stack neatly to the side. Open, you get a clear opening of up to 20 feet wide with no center post. Closed, you get a sleek, modern glass wall with a profile width of just 2.56 inches, meaning you’re looking at glass, not metal framing.

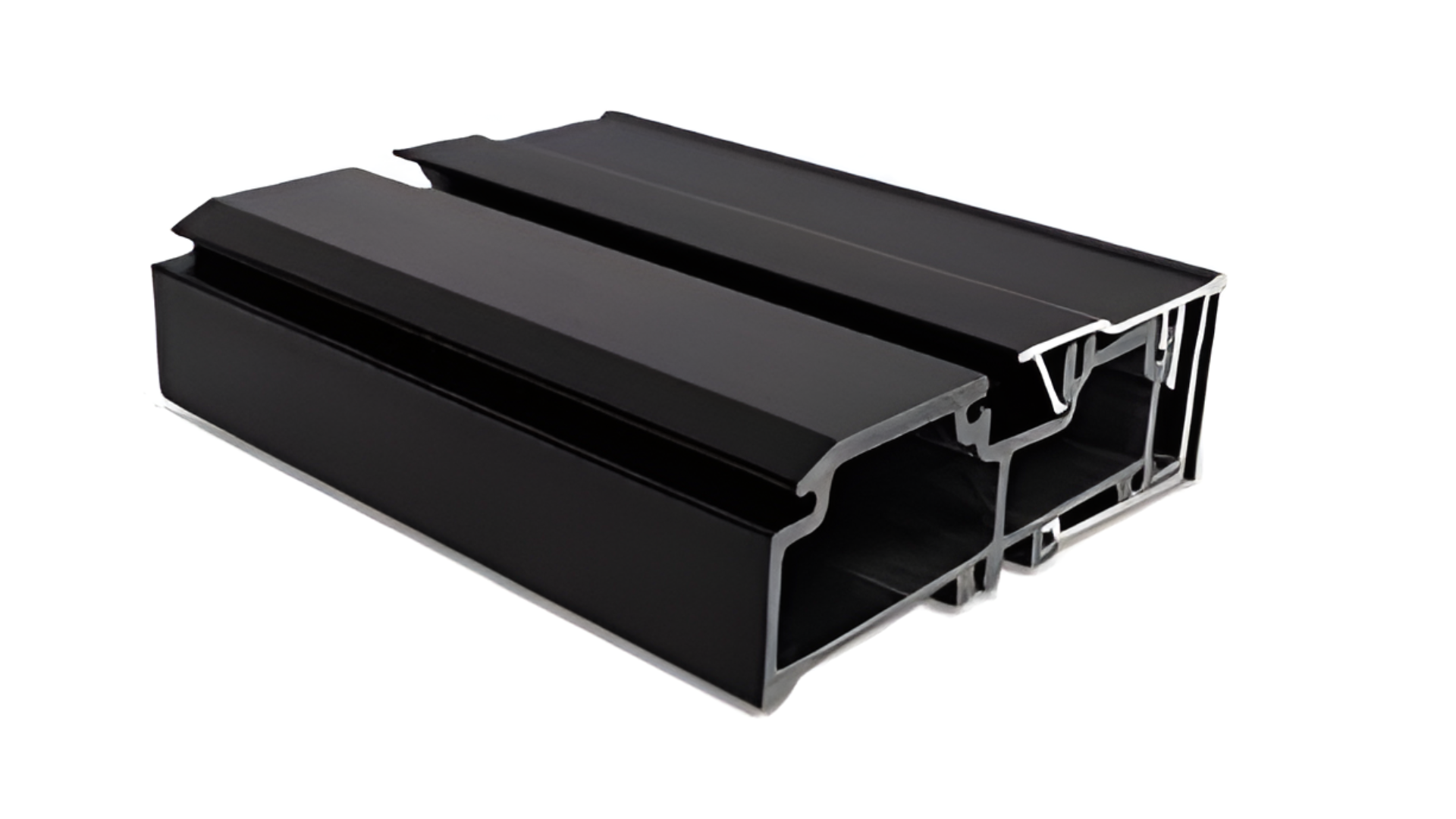

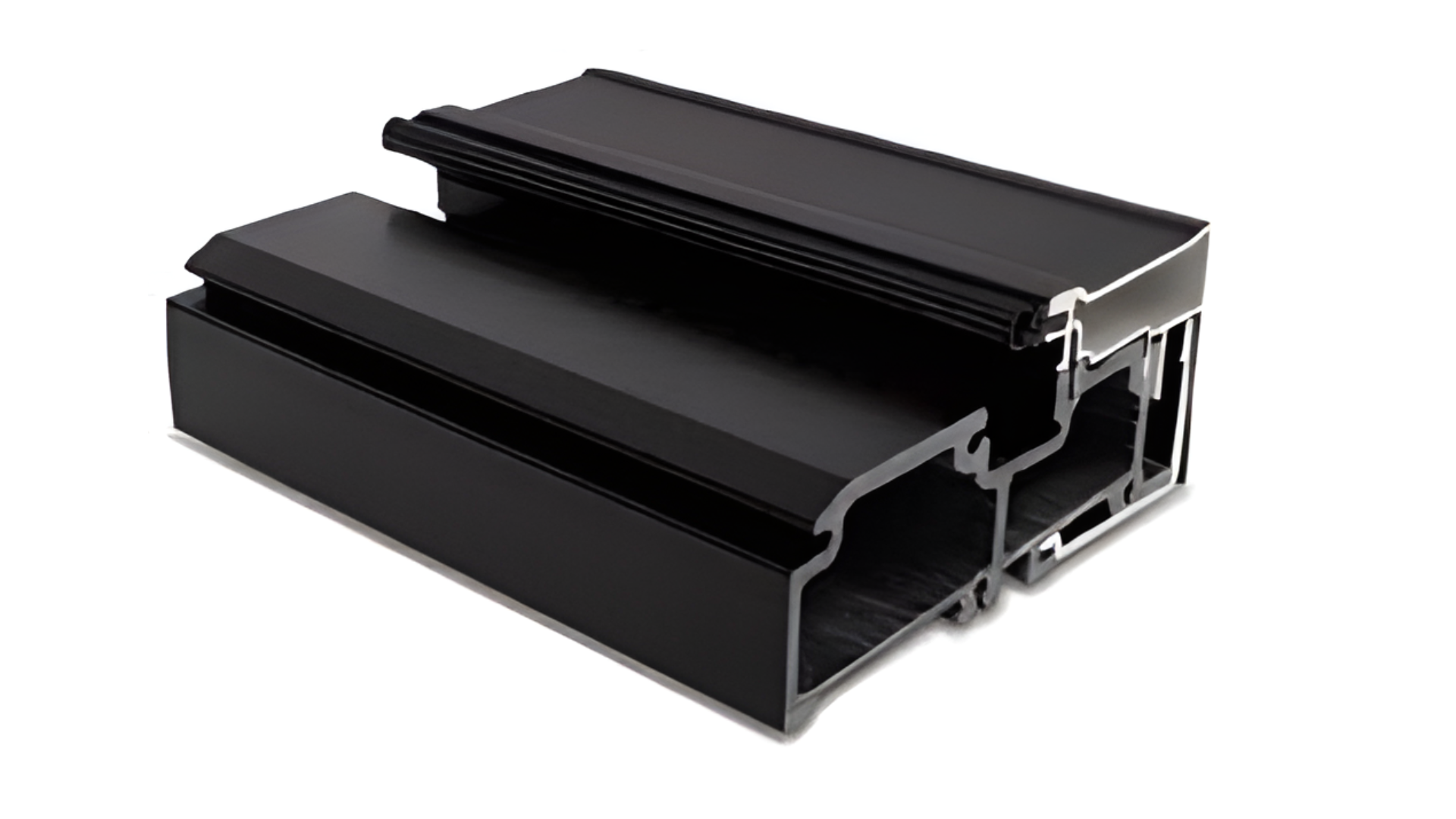

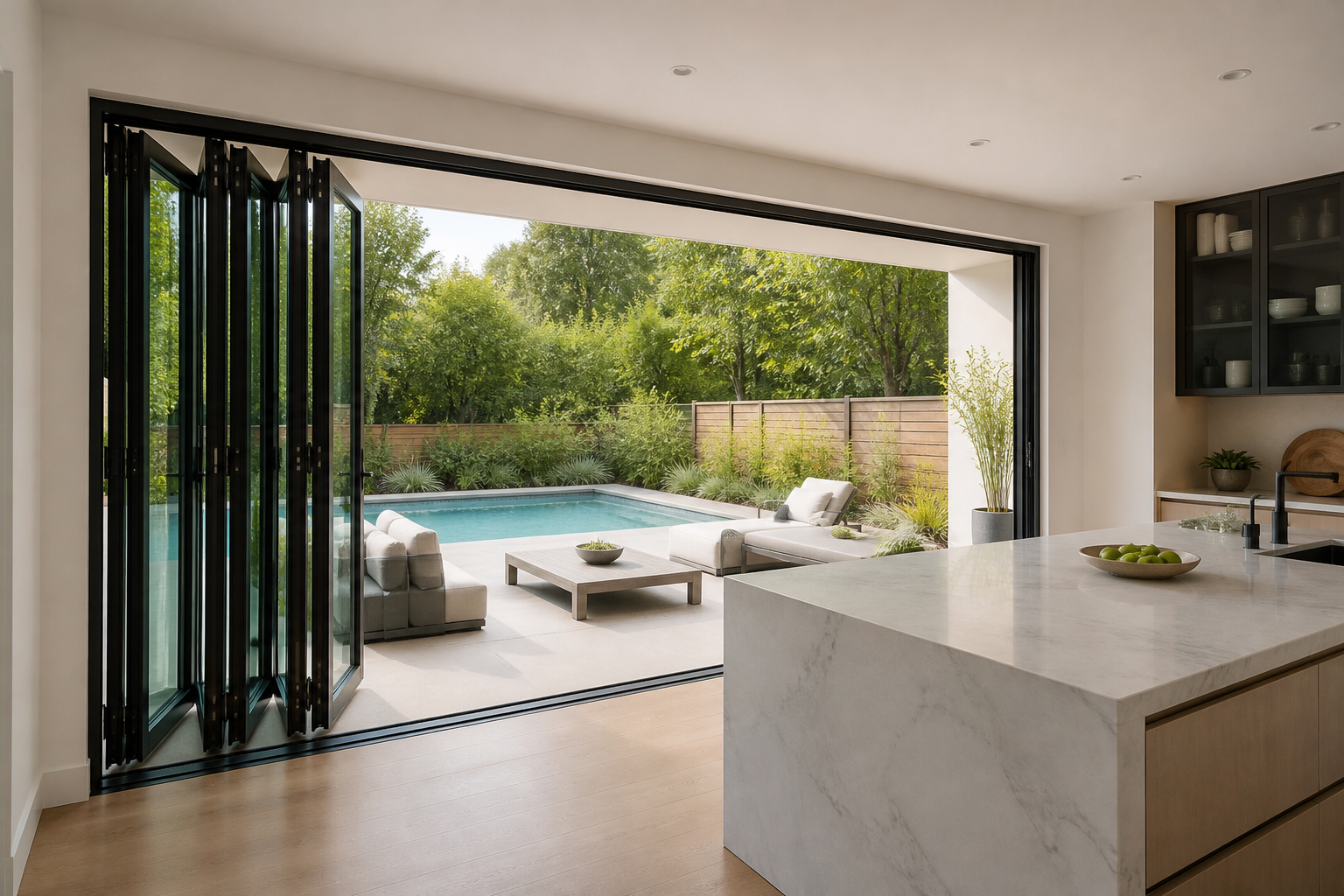

The accordion-style aluminum bifold design suits Dallas homes in two distinct ways. First, it handles our climate. Aluminum doesn’t warp or rot in humidity the way wood-framed folding doors can, and the thermal break in the VLX 100 frame prevents the metal from conducting Dallas summer heat into your home. Second, it fits the way we actually live here. October through April, Dallas is an outdoor city. A bifold door makes your covered patio an extension of your kitchen or family room, not a separate space you visit. Buyers choose the VLX 100 over other bifold systems because it gives them that seamless indoor-outdoor living experience without the maintenance headaches of wood or vinyl options. The 0.098-inch wall thickness on the aluminum extrusion gives the panels structural rigidity that thinner profiles can’t match, so a 20-foot run operates smoothly panel after panel for years.

Technical Specifications

Here’s what you’re actually getting with the VLX 100. These numbers matter when you’re comparing folding door systems side by side.

• Frame material: Aluminum alloy with 0.098″ wall thickness for structural stability
• Profile width: 2.56″ narrow sightlines for more glass, less frame
• Maximum span: Up to 20 feet wide in a single opening
• Track configurations: 2-panel, 3-panel, 4-panel, 5-panel, or 6-panel layouts
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or no screen
• Performance: NFRC-rated thermal break, AAMA 2400/2410 compliant installation, wind-load rated

Performance Features

Thermal Efficiency – The VLX 100 frame uses thermal break technology that separates the interior and exterior aluminum with a low-conductivity barrier. This prevents the frame from acting as a heat bridge, which in a Dallas August is the difference between a door you can touch and one you can’t. NFRC-rated performance means you can compare real verified numbers against other systems. Pair the frame with Low-E glass and your cooling load drops measurably.

Acoustic Performance – If your patio faces a busy Dallas street or you’re near Love Field flight paths, sound control matters. The combination of laminated glass and the VLX 100’s multi-point locking compression seal reduces outdoor noise transfer meaningfully. A laminated glass configuration is the right choice for homeowners within a mile of a freeway, rail line, or under a flight corridor.

Airtightness & Weather Seal – Every panel-to-panel joint and the perimeter frame seal work together to stop air infiltration. In Dallas, air leakage is what drives your HVAC costs, not the occasional 100-degree day. The VLX 100’s compression seals engage fully when the panels lock, creating a continuous airtight barrier across the full width of the opening.

Waterproofing – North Texas gets real rain, plus the occasional sideways thunderstorm. The VLX 100 sill system is designed to channel water outward, not inward, and the multi-layer weather stripping prevents misting at panel junctions. Galvanized steel reinforcement in the frame resists any corrosion that could compromise the seal over time.

Wind Resistance – Dallas sits in a wind zone that requires real structural testing, not just nice marketing. The VLX 100 is wind-load rated for our local climate requirements, and the 0.098-inch frame wall thickness gives the system the rigidity to stay square under pressure. For added insurance, impact-resistant laminated glass is available, which also meets code requirements for storm-prone areas.

Security & Hardware – A 20-foot wall of glass is only as secure as its locking system. The VLX 100 uses multi-point locking hardware at the top and bottom of each panel, not a single center latch. That means every panel locks into the track, not just the lead door. Tempered or laminated glass options add another layer, with laminated being the harder target for forced entry.

Color & Glass Options

The VLX 100 comes in six finish options, and the right choice usually depends on your home’s existing palette. Premium Black is the most requested finish in Dallas right now, especially on modern and transitional homes in neighborhoods like Knox-Henderson and Lake Highlands where black window frames are already the standard. Pure White works on traditional brick exteriors and bright interior walls. Anodized Silver is the low-profile option that disappears into a contemporary build. Bronze and Champagne both pair well with warm stone and stucco, common in North Dallas and Plano. Teak Wood finish gives you a wood look without the rot, warping, or annual sealing that real timber demands in our humidity.

Glass selection is about function, not just looks. Clear is the baseline. Low-E is what we recommend for every Dallas install, because it cuts IR heat transmission and pays for itself in cooling savings. Tempered is safety glass, required by code in many door applications. Laminated adds impact resistance and sound control. Gray Tint and Black Tint reduce glare and add privacy, useful on west-facing openings that catch the brutal afternoon sun from June through September.

Installation by Hale Windows Dallas in Dallas

A bifold door is only as good as its installation. We’ve seen it too many times: a homeowner buys a premium folding door online, hires a general handyman, and six months later the panels are dragging, the lock won’t engage, and the manufacturer warranty is void because the install wasn’t documented to spec. The VLX 100 is a precision system, and precision starts at the opening.

Our process at Hale Windows Dallas starts with a pre-install inspection of the rough opening. We check the header, the floor, and the side jambs for level, plumb, and square before anything gets ordered. If the opening is out by even a quarter inch over a 20-foot span, panels bind, seals leak, and hardware wears out prematurely. Once the opening is confirmed, we set the frame per AAMA 2400/2410 installation standards, which is the industry benchmark for window and door installation. Every perimeter joint gets AAMA 812 low-expansion foam sealant, which fills gaps without bowing the frame. After the panels are hung and adjusted, we run a full water test on the sill and perimeter, then walk you through operation, locking, and maintenance. We’re licensed and insured, and we pull Dallas permits where required and pass the inspections. That’s the difference between a folded door that looks good on day one and one that still operates like new in year ten.

Frequently Asked Questions – VLX 100 Bifold / Folding Door

Get a Quote – VLX 100 Bifold / Folding Door in Dallas

If you’re in the Dallas area and you’re ready to see what the VLX 100 costs for your opening, let’s talk. We’ll come out, measure, and give you a line-item written quote with no pressure and no surprises. Call Hale Windows Dallas at (361) 203-9040 or stop by to schedule your free on-site measurement.

Written by the team at Hale Windows Dallas, authorized ViewLux installation partner serving Dallas, TX and surrounding North Texas communities.
